Low Flare Kitchen Sink Gravel Handlebar System

$99.99 - $334.95 $79.99 - $267.95

Low Flare Kitchen Sink Gravel Handlebar System

$99.99 - $334.95 $79.99 - $267.95

The same great rise and backsweep as the original Kitchen Sink Handlebar, now with new road style drops. The Kitchen Sink Low Flare Handlebar is an ultra-comfortable and aero bar that keeps you in control on and off-road. Looking for more flare? Check out the original Kitchen Sink Handlebar. Unlock bundle pricing when you add our best-selling accessories below.

Style
Width
Add Bag and/or Mount
Add Cruise Control Grips?
Add Really Long Bar Tape?

—DESCRIPTION

The gravel bike handlebar that has everything but the kitchen sink.

If you are looking for comfort, control, and convenience the Kitchen Sink Gravel Bike Handlebar is for you. With widths from 41cm up to 53cm, these new low flare gravel handlebars can aid stability and control but at the same time provide really comfortable hand positions.

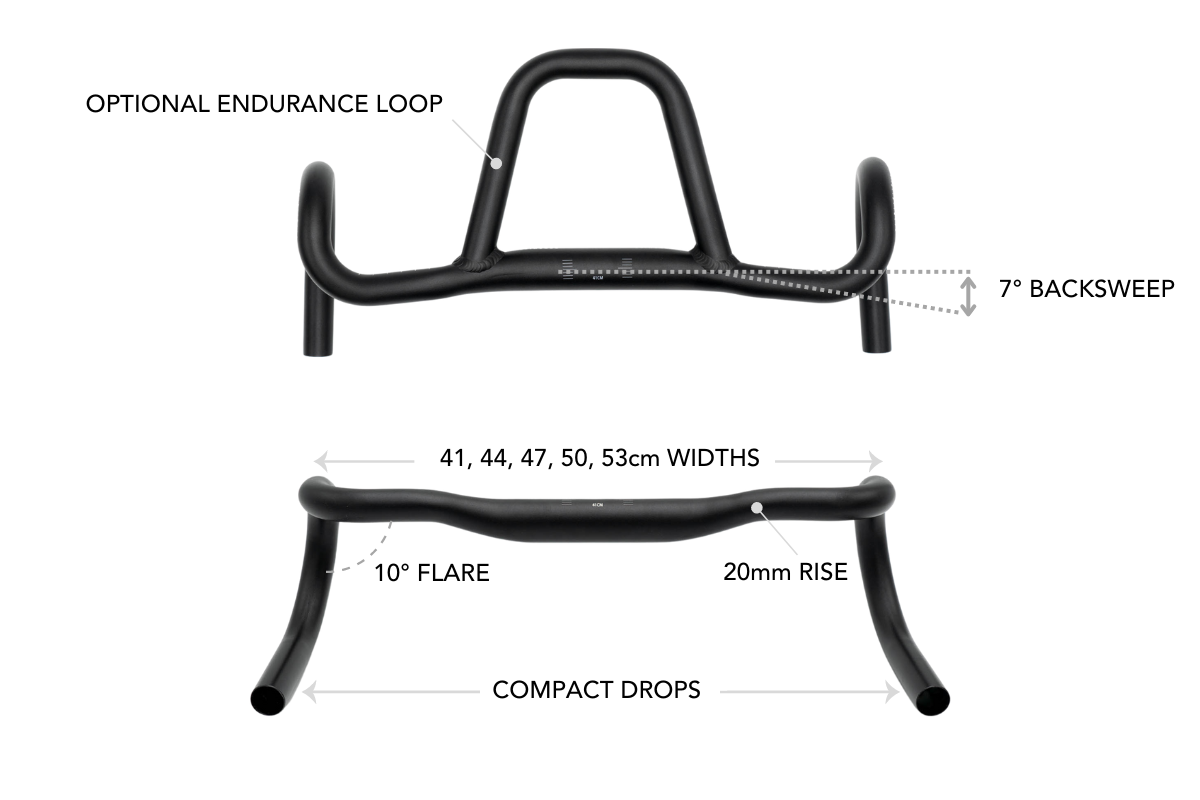

KEY Handlebar Features:

• 20mm of rise means less pressure on the hands and a broad range of fit options to accommodate a variety of gravel riding conditions.
• 7° degrees of sweep means the bar is positioned where your hands want to be, whether you're on the flats, the hoods or the drops during your most epic gravel ride.
• Low Flare (10° degrees) and a compact drop are perfect for road and gravel riders who prefer a more traditional road shaped bar.

Why 10 degrees?

Because it's the right balance between classic dropbar shaping and the ergonomic + comfort advantages of flare. A small amount of flare on performance road bike bars is quickly becoming a very popular option for this very reason.

Loop or Non-Loop?

Choose between two gravel bar styles: LOOP and a more traditional NON-LOOP. The Loop version provides an alternative riding position, a great place to attach gear, and the perfect spot for our custom storage solution: the Kitchen Sink Gravel Handlebar Bag. The bag was designed specifically to fit in the loop and allow easy (single hand) access to all your essentials for bikepacking and long gravel rides. In addition, we created a Computer Mount that attaches to the top of the bag to give you a secure and ideally located spot for your Garmin or Wahoo bike computer.

To get even more comfort and performance out of your Kitchen Sink Gravel Bar, add the ergonomic Cruise Control Grip System. The Top Grips provide an incredibly comfortable position at the tops by expanding the bar and giving you a wide area to rest your hands. And the Drop Grips give you an extra comfortable position while in the drops through an ergonomic style grip that helps spread load over your hands so you can stay in your tuck all day.

Top it all off with some of our Really Long Bar Tape which is specifically designed to be long enough to wrap even the widest gravel handlebar. Oh and it's super comfortable with just the right amount of grip.

+TECHNICAL SPECIFICATIONS




Width41cm44cm47cm50cm53cm
Weight (base version)350g362g373g383g392g
Weight (loop version)460g472g486g497g507g
Rise20mm20mm20mm20mm20mm
Sweep7 deg7 deg7 deg7 deg7 deg
Drop Flare10 deg10 deg10 deg10 deg10 deg
Drop117mm117mm117mm117mm117mm
Reach72mm70mm68mm65mm62mm
Clamp31.8mm31.8mm31.8mm31.8mm31.8mm
Material6061 T6 Aluminum
Intended UseASTM F2043 Class 2 - For on and off-road riding and drops less than 15cm (6").





ProductTop GripsDrop Grips
Weight94 g / pair144 g / pair
Length165 mm (can be
trimmed by 30 mm)
120 mm
MaterialKratonKraton




ProductKitchen Sink  Bagadd-on Computer Mount
Weight120g21g
Capacity0.75 L - 1.0 LN/A
MaterialBallistic Nylon

3D printed Polycarbonate blend

filled with carbon fiber

+FAQ

What Are the Detailed Dimensions (Including the Loop) of the Kitchen Sink Handlebar?

The inner distance of the loop along the handlebar (A) is approximately 5.50in (140mm).

The outer distance of the loop along the handlebar is (B) is approximately 7.875in (200mm).

The width of the 31.8mm diameter section of handlebar (where the stem is clamped) is approximately 85mm - outside that distance the diameter decreases and the bar bends.

The loop has a diameter of 23.8mm which is the same diameter as the rest of the handlebar(outside the 31.8mm clamp area and tapered section)






To read Frequently Asked Questions about the Kitchen Sink Handlebar and Accessories, click here.

+INSTRUCTIONS

Download Instructions (PDF):
Instructions - Kitchen Sink Handlebar

You can view instructions for the Grips on the Cruise Control Grips page here.

You can view instructions for the Bag and Mount here.

X
Learn more about our Kitchen Sink Handlebar Bag
Learn more about the Cruise Control Grip System

Learn more about our Really Long Bar Tape

You can choose between a non-loop and a loop version of the Kitchen Sink Handlebar. With either style you get the same rise, back sweep, and compact drop. The loop allows for alternative hand positions, mount points, and a spot to use the new Kitchen Sink Handlebar Bag and Computer Mount.

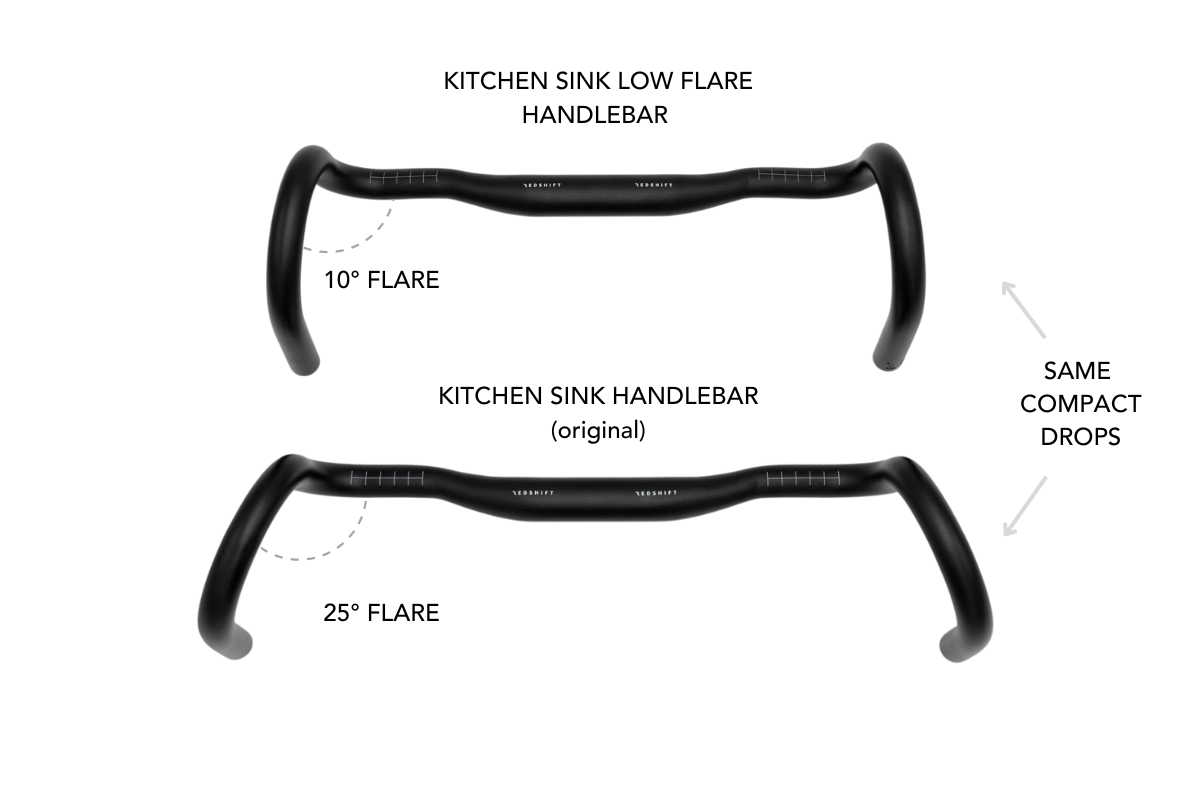

The new Low Flare Kitchen Sink Handlebar features a road-style 10 deg flare (versus the original 25 deg) at the drops, while maintaining the same easy to reach shallow drop and comfort oriented back sweep and rise found on the current 25 deg flare models. This new version of our best-selling Kitchen Sink Handlebar is designed for road and gravel riders who prefer a lower flare, more narrow position.


If you're used to riding with a typical road bike drop bar width (38-46cm), we recommend matching your width or even trying a wider bar - the difference in effective arm angle is negligible, but the effect on control and comfort can be dramatic.
